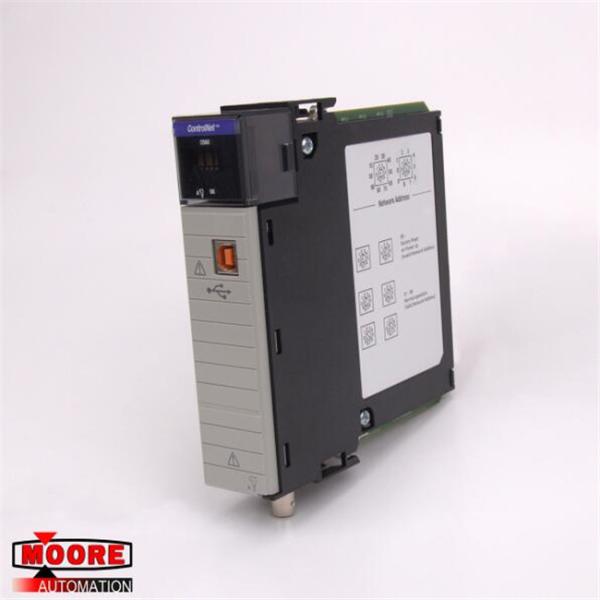

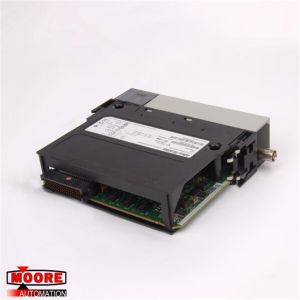

1756-CN2 1756CN2 AB AB ControlLogix Communication Module
⇒ Click here for good price 1756-CN2
| Brand/Manufacturer | AB/USA |
| Part Number | 1756-CN2 |
| Alternate Part Number | 1756-CN2 |
| Description | MOTOR SERVO |
| Dimennsions | 14x13x3.4cm |
| Weight | 0.25kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1756-CN2 ControlNet Communication Bridge Module by AB is a
communication module for ControlLogix devices. It offers the
ControlNet Network and uses the CIP and the P2P network for
high-speed performance. It uses a standard configuration with a
5Mbps communication speed and has a communication capacity of up to
100 Logix connections. The 1756-CN2 can also support a maximum of
128 connections with 99 redistribution points (nodes). It has an
electrical rating of 1100mA draw current at 5.1V DC and one of 3.0A
at 24V DC and it has an operational power dissipation of 5.6W, with
a thermal dissipation of 19.1 BTU/hr.
The 1756-CN2 has an isolation voltage of 30V with a basic
insulation type that is tested at 500V for 60s between ControlNet
to System. It has a single slot width and it can be installed in
any slot on the chassis. It has a ControlNet BNC, a ControlNet
RJ45, and a USB 1.1 port and it uses the Quad shield RG6 coaxial
ControlNet cable. It has a T4A designated temperature code in North
America and an IEC T4 designation code in Europe and it comes in an
open-style enclosure. The 1756-CN2 has a functional temperature
margin between 0 and 60 °C and it operates best at a relative
humidity range of 5-95% with condensation. It has an operational
vibration of 2.0G at 10-500Hz and its operational shock rate is up
to 30G.
