2711-B5A1L1 2711B5A1L1 AB AB PanelView 550 Interface terminal
⇒ Click here for good price 2711-B5A1L1
| Brand/Manufacturer | AB/USA |
| Part Number | 2711-B5A1L1 |
| Alternate Part Number | 2711-B5A1L1 |
| Description | MOTOR SERVO |
| Dimennsions | 26.5x13.5x16.7cm |
| Weight | 1.22kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

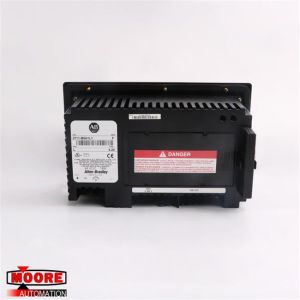

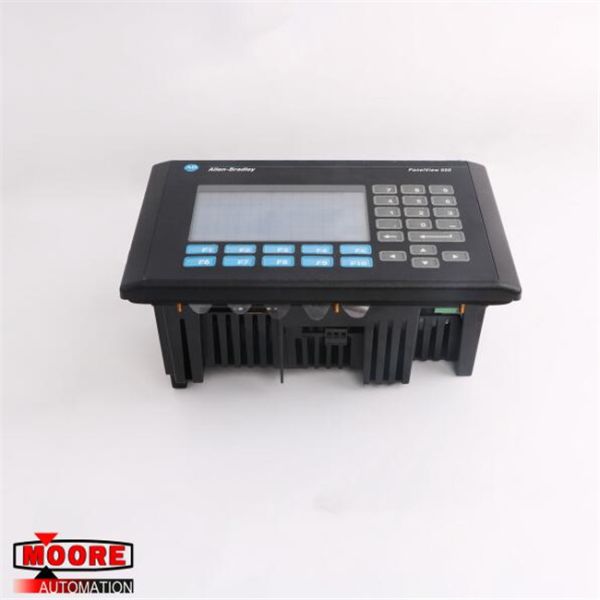

The obsolete AB 2711-B5A1L1 Panelview 550 is an HMI or
Human-Machine Interface terminal that allows the user to interface
with other machines. This Panelview HMI creates its interface with
its 5.5 in. monochrome blue mode LCD screen which the users can
cover with an antiglare shield for protection and better
visibility. The monochrome LCD shows data in high-performance blue
pixel graphics.
The 2711-B5A1L1 HMI terminal can connect to any other machines that
use the Panelbuilder 32 software. The terminal makes its
connections with its Remote I/O Communication Port or with its
RS-232 Printer Port and a 2711-NC13 communication cable or cables.
The user is able to control the 2711-B5A1L1 unit and the machine it
is interfacing with by using the 2711-B5A1L1’s keypad and its
touchscreen to enter information, commands, and data. This unit is
a DC terminal and it is powered by 24V DC power. The 2711-B5A1L1
HMI terminal has an internal memory capacity of 170 KB of
application runtime memory. This unit is illuminated by a halogen
lamp which will last for a long time and is replaceable if
necessary. The internal halogen backlight’s replacement part number
is 2711-NL1. The approximate shipping weight of the 2711-B5A1L1 is
6 lbs while the approximate shipping dimensions are 14 x 11 x 8
inches. The most common Series that the 2711-B5A1L1 HMI terminal
comes in are Series A, B, C, D, E, F, G, and H, while the most
common firmware that it uses are firmware versions 1.00-4.48. The
2711-B5A1L1 is CE-marked and UL certified.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
