Product Details

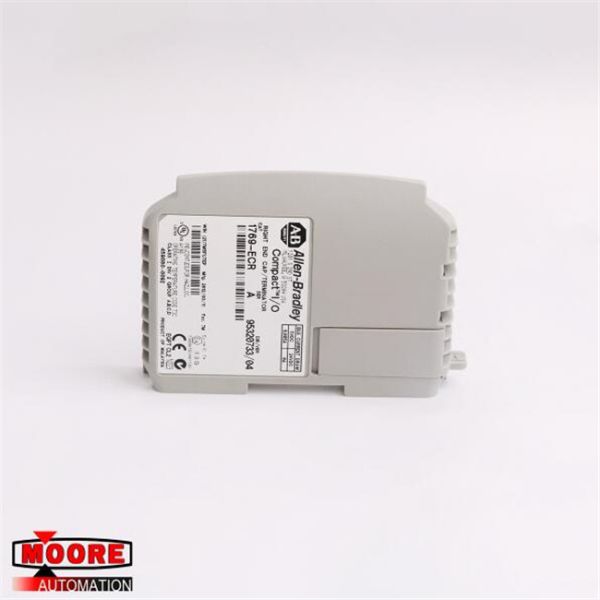

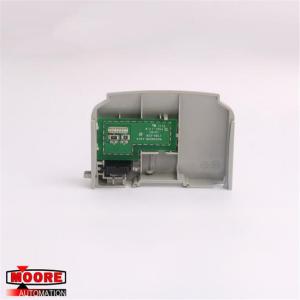

The AB 1769-ECR is a right end cap or terminator that terminates the end of the communication bus of a 1769 controller. It has a maximum bus current draw of 5 mA at 5V DC. It comes with an operating altitude of 6562 feet and an approximate shipping weight of 0.286 lbs. It has an open-type enclosure to ensure safety and it can adapt to certain conditions to reduce the risk of fire and injury. To meet health and safety requirements, the 1769-ECR should be installed with IP54 protection when applied in zone 2 environments because it has no tolerance for sunlight and other UV radiation sources.

The 1769-ECR has an operating temperature of 32 - 140 °F tested in cold, dry heat, and thermal shock environments. It has a non-operating temperature of -40 - 185 °F tested unpackaged during cold, dry heat, and thermal shock. The also 1769-ECR has a 5 - 95% noncondensing relative humidity and its vibration reaches 5 g at 10 - 500 Hz tested during operating. It has an operating shock is 20 g on a DIN rail mount and 30 g on a panel mount. Its non-operating shock is 30 g on a DIN rail and 40 g on a Panel mount.
