1756-ENBT 1756ENBT AB AB ControlLogix Enet/IP Comms Module
⇒ Click here for good price 1756-ENBT
| Brand/Manufacturer | AB/USA |
| Part Number | 1756-ENBT |
| Alternate Part Number | 1756-ENBT |
| Description | MOTOR SERVO |
| Dimennsions | 14x13x3.3cm |
| Weight | 0.2kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

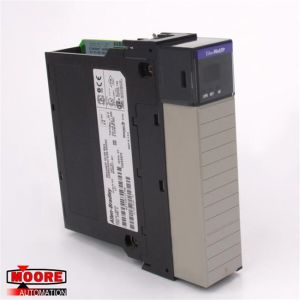

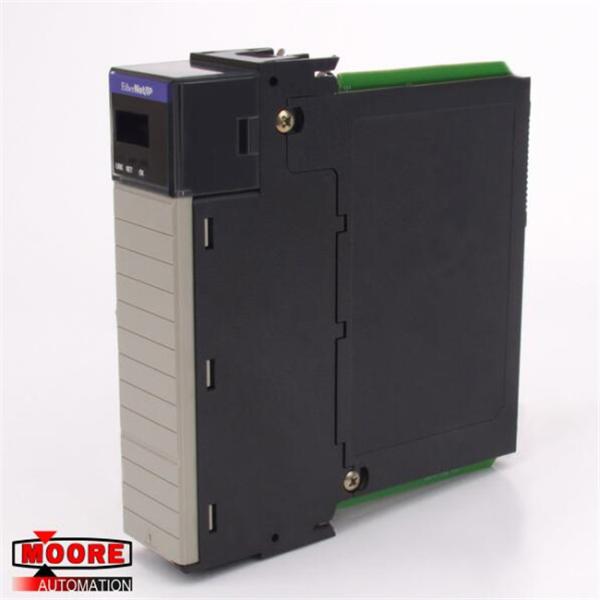

The AB 1756-ENBT ControlLogix Ethernet/IP Bridge Module is a copper
communication module used to transfer large volumes of data using
an Ethernet connection. This module can handle 64 TCP and 128 CIP
connections with a communication rate of 10 / 100 Mbps. This module
supports high-speed processor interlocking, control distributed
I/O, and route to devices on a different NetLinx network, using the
Ethernet/IP network as a backbone. These capabilities allow users
to control, configure, and collect data in just one Ethernet/IP
network. In turn, this allows the users to cut back on maintenance
and support costs and then simplify their network architecture
because fewer networks may then be required to run their
application.
The 1756-ENBT is web-enabled. The module’s settings and internal
diagnostics such as IP traffic, TCP, UDP, collision histogram,
connection management, etc. through a standard web browser. The
users can also get information about the module revision, IP,
subnet, gateway, and Ethernet address, module uptime, vendor, code
information, diagnostic information, name server, boot status,
1756-L1 processor mode information, and network storm information.
The current draw of the 1756-ENBT module at 5.1 Volts DC is 700
milliamps. On the other hand, it has a current draw of 3 milliamps
for 24 Volts DC. The power dissipation for the 1756-ENBT is at 3.7
Watts and thermal dissipation is at 12.6 BTU/hour. It can be
connected to any available slot in a chassis and it is used in
conjunction with the RSLogix software. It can also act as a Remote
I/O Adapter when placed in a remote I/O chassis. This allows the
users to collect and configure data, as well as to remotely control
ControlLogix modules, particularly input, output, analog, or
specialty modules. Note that the 1756-ENBT does not have rotary
switches. The 1756-ENBT is also backwards compatible.
