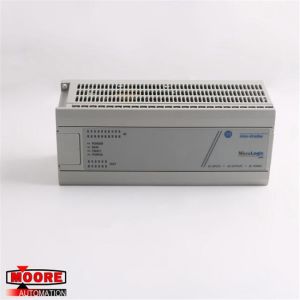

1761-L32AAA 1761L32AAA AB AB MicroLogix 1000 Controller Unit

⇒ Click here for good price 1761-L32AAA

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The 1761-L32AAA is an AB PLC controller classified under the MicroLogix 1000 controller series. The 1761-L32AAA features an I/O count of 32 points. The power supply maximum inrush current for the 1761-L32AAA is rated at 30 Amps for 8 milliseconds. The module is an output type Triac controller with a power supply usage rated at 120 to 240 Volts AC. The 1761-L32AAA comes with the master control relay safety feature. The manufacturer’s recommended storage temperature range for the 1761-L32AAA is -40 degrees Celsius to 85 degrees Celsius. The operating humidity for the 1761-L32AAA is 5% to 95%, non-condensing. The unit comes with a vibration resistance of 5 Hertz to 2000 Hertz on the operating status while in the non-operating mode, the vibration resistance is 5 Hertz to 2000 Hertz.

The 1761-L32AAA meets various certifications straight out of the box. These include the CUL Class 1 Division 2 Groups. The 1761-L32AAA is also UL listed and it features the CE/RCM/EAC compliance. The unit comes with a terminal screw torque of 0.9 to 8.0 pounds on an inch with the electrostatic discharge rated at EN 61000-2 at 8000 Volts. The isolation rating for the part is 1500 Volts AC and it comes with a memory size and type classified as a 1K EEPROM handling approximately 737 instruction words at 437 data words. The AB MicroLogix series of controllers feature up to 5 levels of control. These are small in size, and they offer a high level of performance. Basically, the MicroLogix 1000 controllers offer control capabilities and they are affordable. The 1761-L32AAA fits well in smaller spaces and it is powerful enough to accommodate a broad range of applications.

Why choose us

1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
