1336S-MCB-SPI 74100-071-51 AB AB PC Board
⇒ Click here for good price 1336S-MCB-SPI
| Brand/Manufacturer | AB /USA |
| Part Number | 1336S-MCB-SPI |
| Alternate Part Number | 1336S-MCB-SPI |
| Description | MOTOR SERVO |
| Dimennsions | 37.5x23.2x2.3cm |
| Weight | 0.48kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

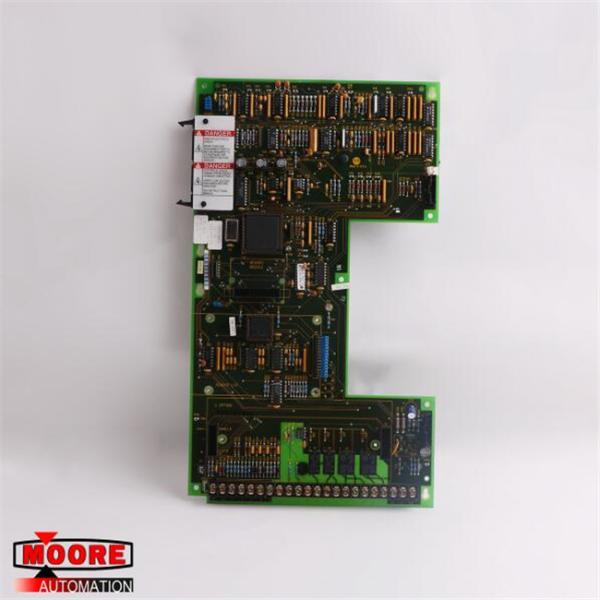

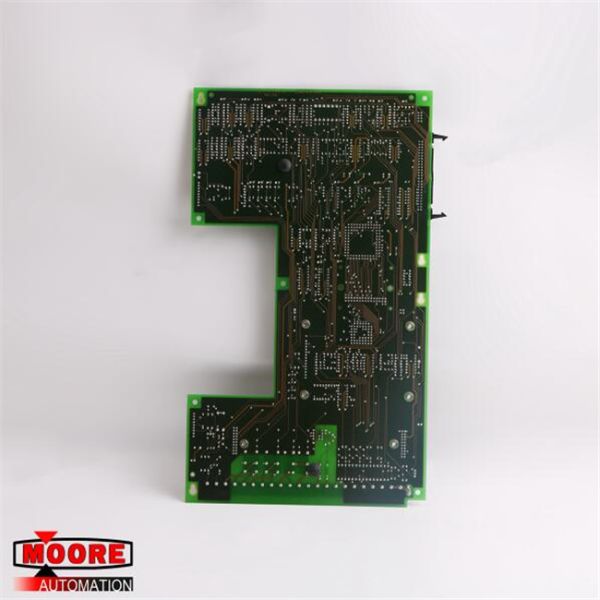

The AB 1336S-MCB-SPI is a PC board with main inverter control that
weighs approximately 5 lbs and is made for use with 1336 PLUS
drives. This board handles the main control of 1336 PLUS drives and
it is compatible with drives that have B, C, D, E, F, G, or H
frames. Note that it is only possible to install one 1336S-MCB-SPI
board per drive and its alternative part numbers are MEL80830,
74100-071-51, and Circuit Board T33603.
These 1336 PLUS three-phase drives with boards like the
1336S-MCB-SPI are ideal for use with general purpose applications.
They come with input voltages ranging from 200 to 600V AC or 310 to
775V DC, a kW rating of 0.37 kW at the lowest to 448 kW at the
highest, and an HP rating of a minimum of 0.5 HP to a maximum of
600 HP. These drives also make use of other programming languages
aside from English, specifically French, Italian, German, and
Spanish, and the 1336S-MCB-SPI may or may not have a human
interface module (HIM) installed. Note that these HIM come with
display panels which show the current status of the drive and
control panels with keypad inputs.
1336 PLUS drives, even with the 1336S-MCB-SPI board installed, do
not have any short circuit fusing for the input power. For
protection, these drives will trip when they reach specific AC or
DC voltage limits. These drives are recommended for use at
temperatures of 0 to 40 °C, except for those with an open type
enclosure since they can work at up to 50 °C. All 1336 PLUS drives
can also be stored at a temperature ranging from -40 to 70 °C.
