1756-L55M12 1756L55M12 AB AB Logix5555 Processor 750KB Memory
⇒ Click here for good price 1756-L55M12
| Brand/Manufacturer | AB/USA |
| Part Number | 1756-L55M12 |
| Alternate Part Number | 1756-L55M12 |
| Description | MOTOR SERVO |
| Dimennsions | 3.5x14x14.5cm |
| Weight | 0.34kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

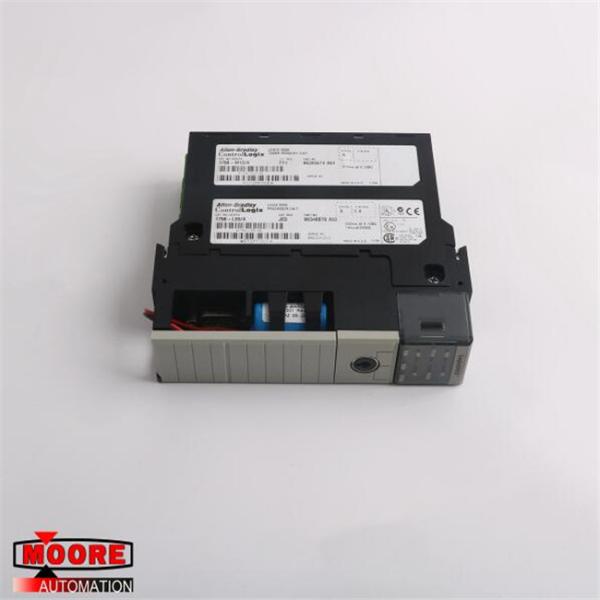

The AB 1756-L55M12 is a ControlLogix 5555 controller. This
particular controller has an available memory of 750 kbytes for
data and logic. It also has an I/O memory of 208 kbytes but it does
not have a nonvolatile memory. It weighs 0.35 kg or 12.5 oz and has
an open style enclosure type rating.
Being part of a ControlLogix system, the 1756-L55M12 controller is
used together with the RSLogix 5000 software and is placed in a
ControlLogix 1756 chassis. It can support different modes of
communication available in the system, such as ControlNet,
EtherNet/IP, DH+, DeviceNet, and universal remote I/O networks.
The backplane current of the 1756-L55M12 controller is 1.23 A at
5.1V DC and 0.014 A at 24V DC. It has a power dissipation of 5.6W
and a thermal dissipation of 19.1 BTU/hr. It has a conducted RF
immunity of 10V rms with 1 kHz sine-wave 80% AM from 150 kHz to 80
MHz. It also has an isolation voltage of 30V, which is continuous
and a basic insulation type. The 1756-L55M12 controller has been
tested to withstand 707V DC for 60 s.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
