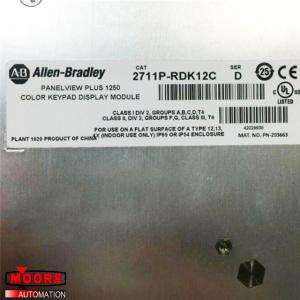

2711P-RDK12C 2711PRDK12C Allen Bradley AB PanelView Plus 1250 Color
Keypad Display Module
⇒ Click here for good price 2711P-RDK12C
| Brand/Manufacturer | AB/USA |
| Part Number | 2711P-RDK12C |
| Alternate Part Number | 2711P-RDK12C |
| Description | DeviceNet Daughtercard |
| Dimennsions | 20.3x16.2x4.2cm |
| Weight | 0.38kg |
Product Details
The 2711P-RDK12C PanelView Plus CE 1250 Display Module Kit, is a
12.1 inches full-color display module for the AB PanelView Plus
1250 CE operator interface and it is a standard device which
provides users with an easy interface to their machinery for
complete control and monitoring. It is used to display information
graphically, thereby allowing the operators to quickly understand
the status of their applications. The 2711P-RDK12C features a Color
Active Matrix LCD screen with a 12.1 inches display size, and it
has a display area of 246mm x 184mm with 800 x 600 18-bit color
display resolution. It offers users a 50,000-hour rated replaceable
backlight with 300cd/m² Nits of screen brightness, and it allows
users to easily set and input operational parameters using its
Analog Resistive Touchscreen with about 1 million presses of
actuation and an operational force of 340G.
Users can also access and input operation parameters through the
Stainless-Steel Domed Membrane Keypad with functional (F1 through
F20, K1 through K20) keys, Alpha-Numerical keys (0 to 9, ., -,
Backspace, Enter, Left and Right tab, Shift, Esc, Ctrl, and Alt),
and Navigational keys (Arrow Up and Down). The 2711P-RDK12C has an
operational heat dissipation of 240 BTU/hr and its operating
temperature range is 32 to 131°F, with a storage temperature range
of 13 to 158°F, at 5 to 95% humidity. The 2711P-RDK12C, like other
components of the PanelView Plus series, can also be installed at
an altitude of 2000m without de-rating. It has an operating shock
resistance of 15G for up to 11 milliseconds, with a vibration
resistance of 30G for 11 milliseconds, and it is protected by a
NEMA Type 12, 13, 4X rated enclosure.
