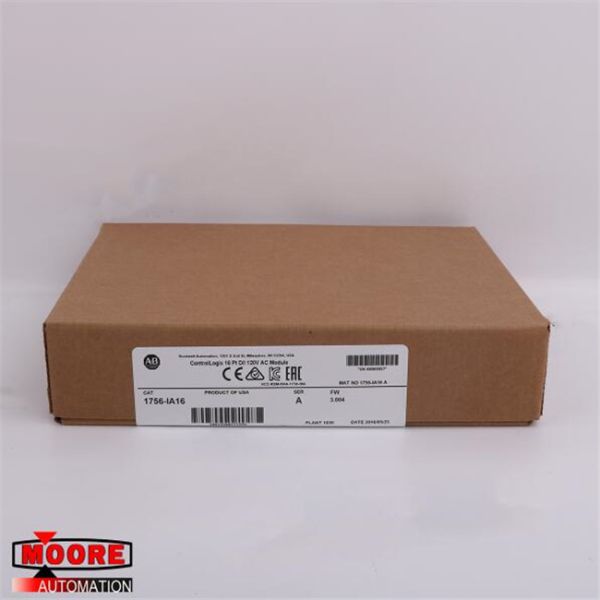

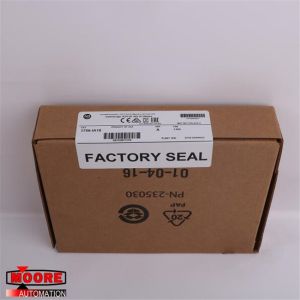

1756-IA16 1756IA16 AB AB ControlLogix Digital I/O Module
⇒ Click here for good price 1756-IA16
| Brand/Manufacturer | AB /USA |
| Part Number | 1756-IA16 |
| Alternate Part Number | 1756-IA16 |
| Description | MOTOR SERVO |
| Dimennsions | 23.3x18.2x5.3cm |
| Weight | 0.35kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1756-IA16 is a ControlLogix digital I/O module. In
particular, it is an AC digital input module that connects to a
ControlLogix chassis and it requires an RTB, removable terminal
block, a 1492 IFM, or an interface module, to connect all
field-side wiring. It has 8 diagnostic inputs, with 8 points per
group. The 1756-IA16 has features that users can configure, namely
the ‘change of state’ and ‘input filter times’ settings which can
be adjusted by using the RSLogix 5000 software. The 1756-IA16
module's operating voltage range is from 74 to 132 Volts AC at a
frequency of 47 to 63 Hertz, while both the voltage category and
input frequency are 120 Volts AC and 50/60 Hertz, respectively.
If the 1756-IA16 screwed to the backplane, the input delay time
from 'off' to 'on' is 10 milliseconds maximum plus the filter time
(this is user-selectable at 1 or 2 milliseconds) for the hardware
delay and 8 milliseconds maximum plus filter time (also
user-selectable at 9 or 18 milliseconds) from 'on' to 'off'. At 5.1
Volts DC, the current draw is 100 milliamps and there are 2
milliamps of current draw at 24 Volts DC. The total backplane power
is 0.58 Watts and it dissipates 5.8 Watts of power at 60 degrees
Celsius for and 18.41 BTU/hour of thermal energy. The maximum
off-state voltage is 20 Volts and the current is 2.5 milliamps. The
on-state current of the 1756-IA16, on the other hand, ranges from a
minimum of 5 milliamps at 74 Volts AC to a maximum of 13 milliamps
at 132 Volts AC. The maximum recorded inrush current is 250
milliamps peak, decaying to less than 37% in 22 milliseconds
without activation.
