1786-RPCD 1786RPCD AB AB ControlNet Coaxial Hub Repeater
⇒ Click here for good price 1786-RPCD
| Brand/Manufacturer | AB/USA |
| Part Number | 1786-RPCD |
| Alternate Part Number | 1786-RPCD |
| Description | MOTOR SERVO |
| Dimennsions | 11x10.7x7cm |
| Weight | 0.18kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

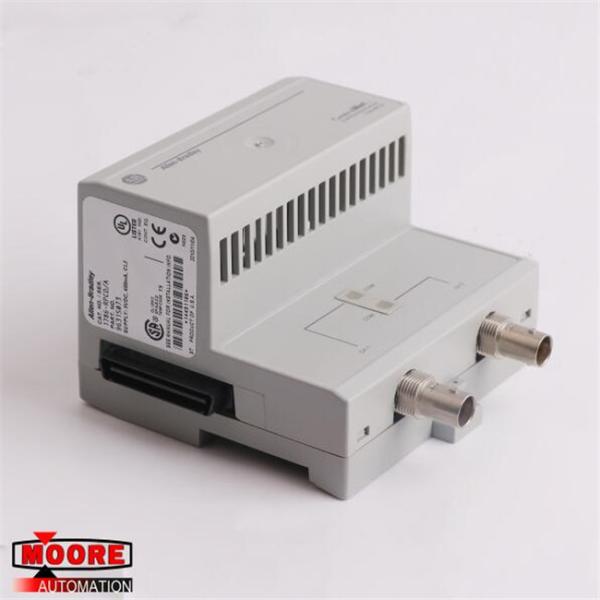

The 1786-RPCD is a coaxial repeater module control net manufactured
by AB. It featured a typical repeater distance of 0 to 1 kilometer
and it is used with the RG6 copper coaxial cable. The 1786-RPCD
coaxial repeater module joins to the RPA/B repeater adapter that
supplies it with 5 Volts DC, and it has a backplane current draw of
400mA at 5 Volts DC maximum. The 1786-RPCD is designed to extend
the length of a network, provide a point-to-point topology, or do
network media conversion from coaxial media to fiber media and vice
versa. The 1786-RPCD operating temperature is 32 to 140 degrees
Fahrenheit, a non-operating temperature of 60 degrees, for
conducting RF Immunity according to the IEC 61000-4-5 standards. It
has a vibration of 5g at 10 to 500 Hertz, with a relative humidity
range of 5 to 95% for non-condensing humidity. The 1786-RPCD is
powered by a repeater adapter. The 1786-RPCD makes it easy to
connect multiple 1000 meters copper segments to a single repeater
adapter (the 1786-RPA). It gives two copper channels and activity
status indicators for each channel. The 1786-RPCD consists of two
status indicators which are interpreted by the operator to
communicate fault situations and if it is powering up, including if
there are faults in the data being obtained at the modules. Its
delay value is 100ns.
When installing the 1786-RPCD, place the 1786-RPCD module at a
30-degree angle. Hook the lip on the backside of the module to the
top of DIN rail and rotate it onto the track. Then press the module
onto the DIN rail until the flush appears. Meanwhile, the locking
tab should snap into the correct location and lock the module to
the DIN rail. When necessary, slide the module to the left to join
with the repeater adapter or another repeater module. It is
important to be observant when inserting or removing the module. It
is not recommended to remove or add the 1786-RPCD module under
power. It should be powered off when entering and disconnecting,
and the area should be determined to be nonhazardous. The 1786-RPCD
applies when the hub-based topology required in the network and the
segments need a longer copper wire distance; the network design
requires a separated section and the number of nodes also needs
repeaters.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
