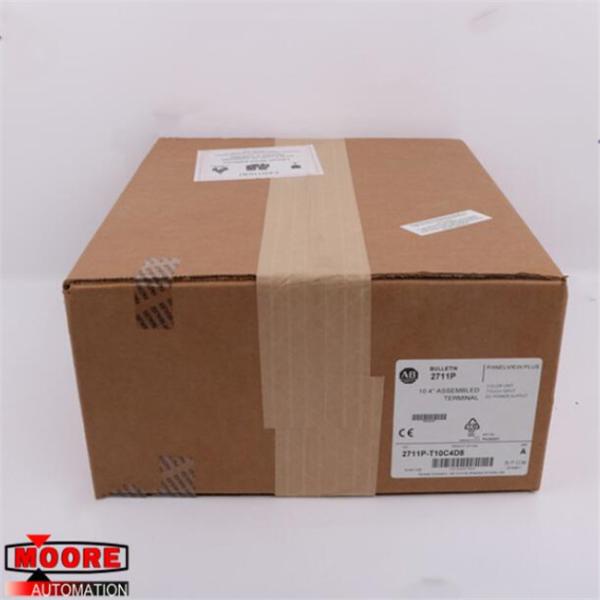

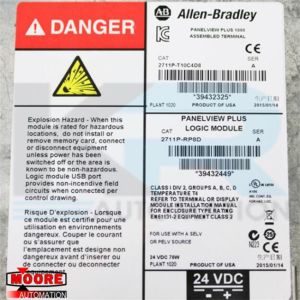

2711P-T10C4D8 2711PT10C4D8 Allen Bradley AB PanelView Plus Terminal
⇒ Click here for good price 2711P-T10C4D8
| Brand/Manufacturer | AB/USA |
| Part Number | 2711P-T10C4D8 |
| Alternate Part Number | 2711P-T10C4D8 |
| Description | MOTOR SERVO |
| Dimennsions | 34x39x18.5cm |
| Weight | 3.45 kg |
Product Details
The 2711P-T10C4D8 is an AB PanelView 6 Plus 1000 Series terminal.
The 2711P-T10C4D8 is an operator interface that allows users to
monitor, manage, and display application status information. The
2711P-T10C4D8 uses modular components that allow for flexible
configuration, installation, and upgrades. This factory-assembled
terminal has both a display module and a logic module. As indicated
by the "T" in the part number of this unit, it has a touchscreen
input. It has a 10.4-inch color TFT display (indicated by the "C"
in part number). The resolution of the display is 640 x 480 pixels
with an 18-bit color graphics. The display has a brightness of 300
cd/m2 (Nits). The Panelview Plus family is a wide range of rugged
terminals that provide features like premier integration with an
Integrated Architecture platform. Optional communication modules
are available for additional network communication. The
2711P-T10C4D8 terminal has Ethernet, RS-232, and 2 USB host ports
for communication. These allow the user to connect the terminal to
other machines using FactoryTalk View Machine Edition software and
with a 2711-NC13 communication cable.
The 2711P-T10C4D8 is powered using 18 to 30 Volts DC and 100 to 240
Volts AC at 50 to 60 Hertz. The power consumption (DC) is 15 Watts
maximum (0.6 A at 24 Volts DC) and 9 Watts typical (0.375 A at 24
Volts DC). For the AC voltage, the power consumption is 35 VA
maximum and 20 VA typical. The 2711P-T10C4D8 processor's speed has
been increased from 350 MHz to 1 GHz and the screen transition rate
is approximately 70% faster than in previous models. The
2711P-T10C4D8 has an internal memory of 256 MB RAM and 512 MB
nonvolatile(ROM). The illumination of the 2711P-T10C4D8’s backlight
display has also been enhanced. The approximate shipping weight is
8 pounds and the dimensions are 16 x 14 x 8 inches. This device
works on the Windows CE 6.0 operating system, but it does not
support the extended features and file viewers. However, the
2711P-T10C4D8 can connect to a variety of external hardware such as
printers, mice, and keyboards.
