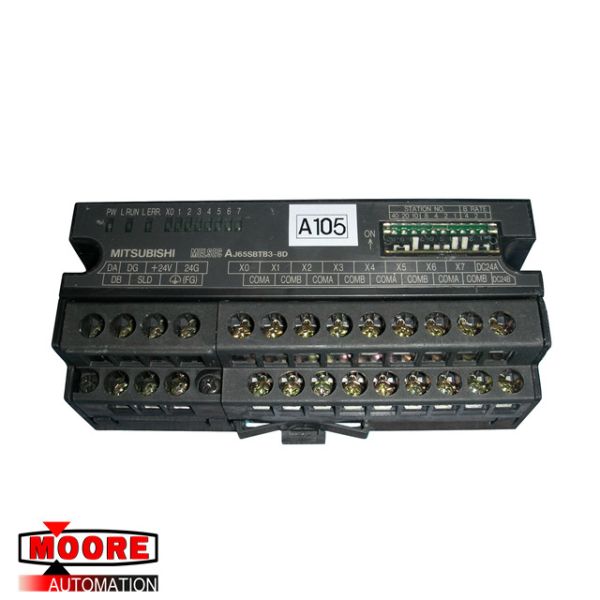

AJ65SBTB3-8D MITSUBISHI Input Modules 8 points DC24V(7mA) 3-wire type response time

Product Details

Specification

Number of input points: 16 points

Insulation method: Photocoupler

Rated input voltage: 24 V DC

Rated input current: Approx. 7 mA

Operating voltage range: 19.2 to 26.4 V DC (ripple ratio: within 5 %)

Max. simultaneous ON input points: 100 %

ON voltage/ON current: 14 V or higher/3.5 mA or higher

OFF voltage/OFF current: 6 V or lower/1.7 mA or lower

Input resistance: Approx. 3.3 kΩ

Response time: OFF-ON 1.5 ms or lower (when 24 V DC); ON-OFF 1.5 ms or lower (when 24 V DC)

Common wiring method: 8 points/1 common (terminal block B-wire type)

Input method: Sink/source shared type

Number of stations occupied: 1 station 32 points assignment (use 8 points)

I/O module power supply:

Voltage 20.4 to 26.4 V DC (ripple rate: within 5 %)

Current 40 mA or lower (when 24 V DC and all point is ON)

Noise durability: DC type noise voltage 500 Vp-p, noise width 1 µs, noise carrier frequency 25 to 60 Hz (noise simulator condition)

Withstand voltage: 500 V AC for 1 minute between all DC external terminals and ground

Insulation resistance: 10 M Ω or higher, measured with a 500 V DC insulation resistance tester

External wiring system: 7-point 2-piece terminal block (transmission circuit, module power supply terminal), Direct-type 18-point terminal block (I/O power supply area) (M3 screw)

Applicable solderless terminal:

RAV1.25-3.5 (in conformance with JIS-C2805) [Applicable wire size: 0.3 to1.25 mm2]

V2-MS3 (Japan Solderless Terminal Mfg. Co., Ltd.), RAP2-3S RAP2-3SL (Japan Terminal Co., Ltd.)

2-3N, 2-3S (NICHIFU TERMINAL INDUSTRIES Co., Ltd.) [Applicable wire size: 1.25 to 2 mm2]
