Product Details

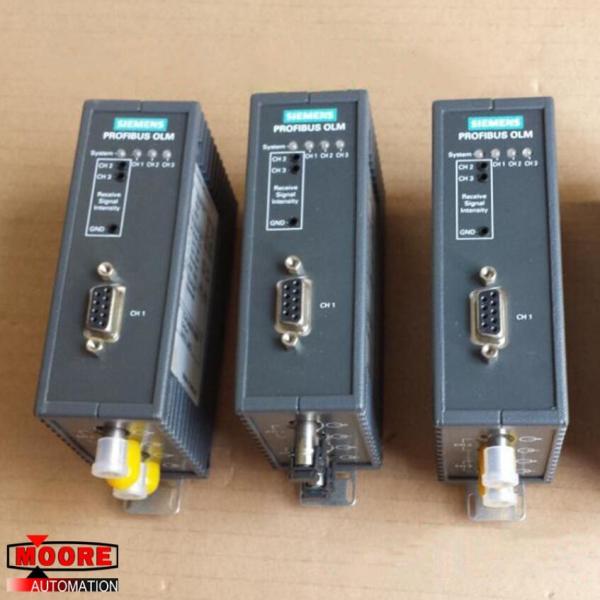

PROFIBUS OLM/G12-1300 V3.1 optical link module with 1 RS485 and 2 glass FOC Interfaces (4 BFOC sockets), 1300 Nm shaft Length for large distances with signaling contact and test port

Power supply:

Operating voltage 24 V DC safety extra low voltage permitted voltage range 18..32 V DC NEC Class 2

Current consumption max. 200 mA

Output voltage for bus termination RS-485 (D-sub jack, pin 6) 5 V DC+5/-10%,

Signaling Contact:

Function: floating contact, opens in case of error

Voltage:

CE: max. 50 V DC/30 V AC safety extra low voltage;

cULus: max. 30 V DC/30 V AC safety extra low voltage

Current max 1.0 A

Signal transmission:

Transmission rate 9.6; 19.2; 45.45; 93.75; 187.5; 500 Kbps 1.5; 3; 6; 12 Mbps

Transmission rate setting automatic

Bit error rate <10-9

Signal delay time (any input/output) ≤ 6.5 tBit

Retimer:

Input (all channels)

Signal distortion ± 30%

Bit length ± 0.12%

Output (all channels): Average bit length ± 0.01%
